Varm Up Series

Name: Varm Up Series
SKU: varm-up
Availability: InStock

R32 EVI DC inverter monoblock for heating, cooling and hot water

Heating capacity8 – 35 kW

RefrigerantR32

Operating range-30 °C to +43 °C

FunctionsHeating · Cooling · DHW

Request a quotation Ask a technical question

Tell us your project requirements and we will reply with pricing and lead time.

Overview

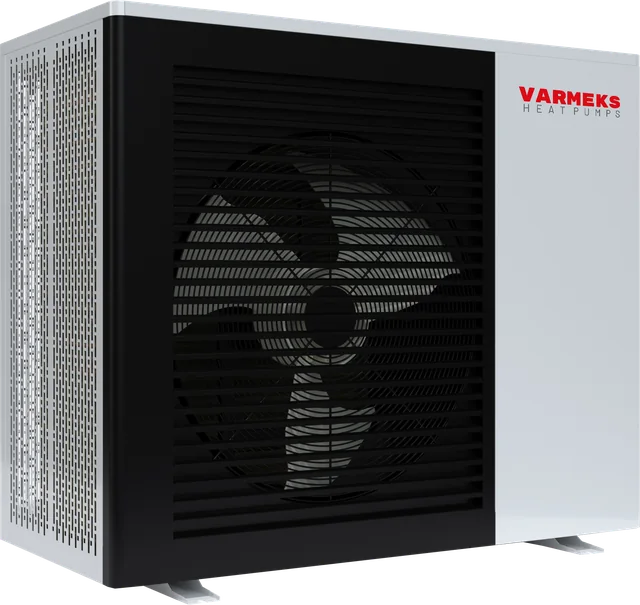

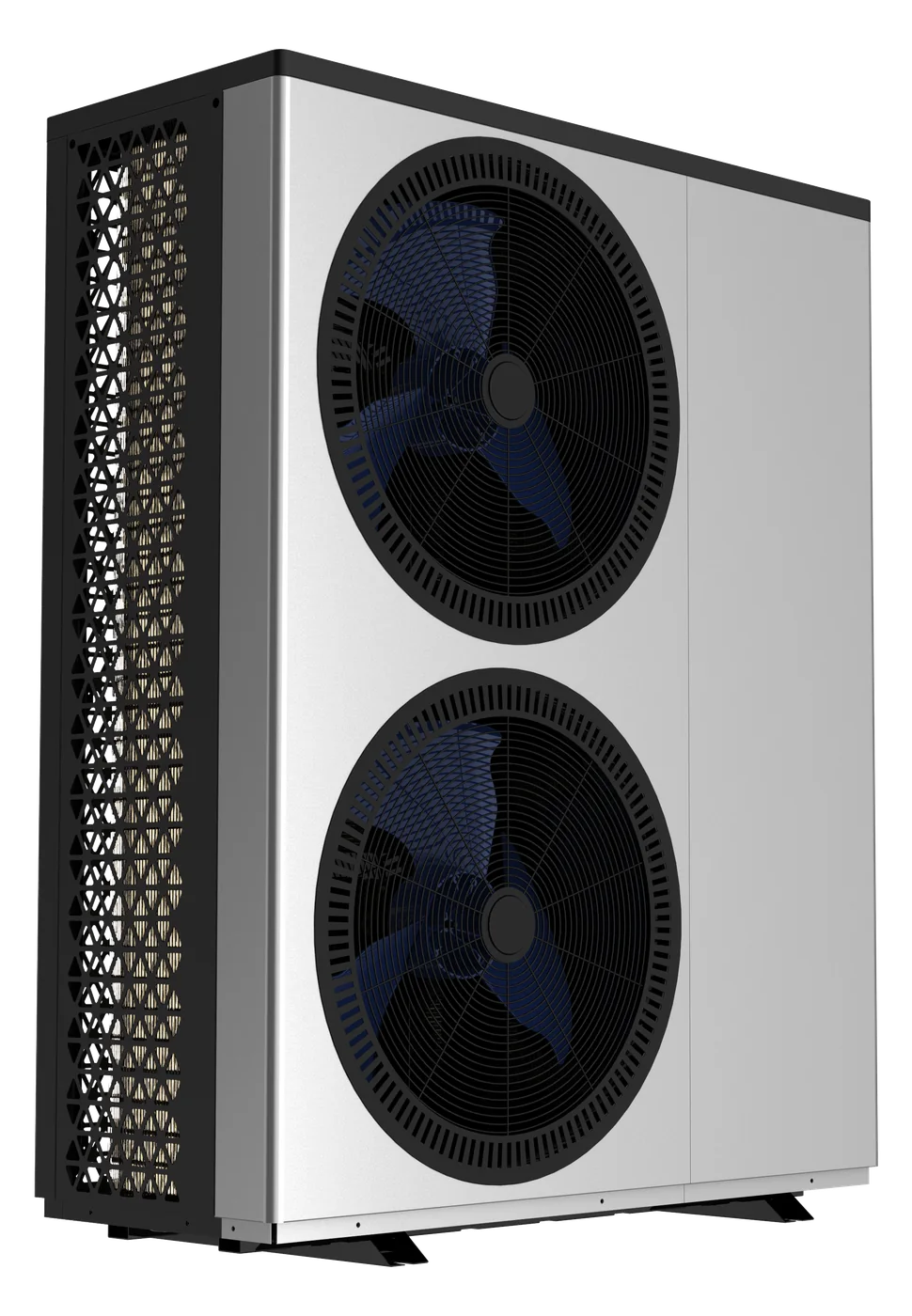

The Varm Up Series is Varmeks' core residential monoblock air-to-water heat pump, built around an EVI (enhanced vapour injection) DC inverter compressor and R32 refrigerant, whose GWP is roughly one third that of R410A. Seven capacities from 8 kW to 35 kW cover apartments, detached houses, villas and small commercial buildings, with heating, cooling and domestic hot water all delivered from a single outdoor unit that needs no refrigerant piping on site.The Varm Up Series is Motiontec Energy's core residential monoblock air-to-water heat pump, built around an EVI (enhanced vapour injection) DC inverter compressor and R32 refrigerant, whose GWP is roughly one third that of R410A. Seven capacities from 8 kW to 35 kW cover apartments, detached houses, villas and small commercial buildings, with heating, cooling and domestic hot water all delivered from a single outdoor unit that needs no refrigerant piping on site.

Thanks to EVI technology the units keep working reliably at outdoor temperatures down to -30 °C, with an overall operating window of -30 to 43 °C. Heating outlet water can be set between 20 and 58 °C, domestic hot water between 33 and 60 °C and chilled water between 7 and 25 °C, so the same system can serve radiators, underfloor circuits, fan coils and a DHW cylinder. Rated heating COP reaches up to 4.92 under standard test conditions (7/6 °C air, 30/35 °C water).

Wi-Fi/IoT control with 0.1 °C setpoint precision, a Panasonic compressor, an integrated Shimge DC circulation pump (AWMT pump on the three-phase 28 and 35 kW units), IPX4 protection and sound pressure from only 53 dB(A) at 1 m round out a durable, service-friendly package. Single-phase 230 V models cover 8-18 kW, while the 23-35 kW units run on 380 V three-phase power. Varmeks backs the series with a 2-year warranty.Wi-Fi/IoT control with 0.1 °C setpoint precision, a Panasonic compressor, an integrated Shimge DC circulation pump (AWMT pump on the three-phase 28 and 35 kW units), IPX4 protection and sound pressure from only 53 dB(A) at 1 m round out a durable, service-friendly package. Single-phase 230 V models cover 8-18 kW, while the 23-35 kW units run on 380 V three-phase power. Motiontec Energy backs the series with a 2-year warranty.

Key features

R32 refrigerant with a GWP only one third that of R410A
EVI DC inverter technology with Panasonic compressor - reliable operation down to -30 °C
Heating, cooling and domestic hot water from a single monoblock unit
Heating outlet 20-58 °C, DHW outlet 33-60 °C, cooling outlet 7-25 °C
COP range 4.23-4.92 (heating), DHW COP up to 4.3
Wi-Fi / IoT control with 0.1 °C temperature precision
Integrated Shimge DC circulation pump, IPX4 protection, low noise from 53 dB(A) at 1 m
Seven models 8-35 kW, single-phase (8-18 kW) and three-phase (23-35 kW); 2-year warranty

Applications

Houses and apartments
Villas and holiday homes
Small commercial spaces (offices, shops, workshops)
Low-to-medium capacity heating and cooling projects
Radiator, underfloor and fan-coil systems with a domestic hot water cylinder
Cascade installations with buffer tank for larger loads

Technical specifications

Parameter	Varm Up 8 kW	Varm Up 13 kW	Varm Up 16 kW	Varm Up 18 kW	Varm Up 23 kW	Varm Up 28 kW	Varm Up 35 kW
Model code	VM-OMBI12008	VM-OMBI12013	VM-OMBI12016	VM-OMBI12018	VM-OMBI312023	VM-OMBI312028	VM-OMBI312035
Power supply	230V/1Ph/50-60Hz	230V/1Ph/50-60Hz	230V/1Ph/50-60Hz	230V/1Ph/50-60Hz	380V/3Ph/50-60Hz	380V/3Ph/50-60Hz	380V/3Ph/50-60Hz
Heating capacity range (kW)	1.57~8.40	4.40~13.00	5.8~15.5	5.9~18.2	7.5~23.0	10.2~28.0	12.8~35.0
Heating power input (kW)	0.32~1.87	0.90~3.02	1.22~3.66	1.20~4.11	1.61~5.38	2.17~6.56	2.71~8.19
COP range	4.49~4.91	4.30~4.90	4.23~4.75	4.43~4.92	4.28~4.66	4.27~4.70	4.27~4.72
Cooling capacity range (kW)	0.99~6.22	2.80~8.20	5.5~11.0	3.81~11.53	4.73~14.6	6.54~19.8	8.13~24.6
Cooling power input (kW)	0.29~2.18	0.85~3.31	1.67~3.99	1.11~4.05	1.47~5.29	2.02~7.17	2.52~8.95
EER range	2.85~3.41	2.48~3.29	2.76~3.29	2.85~3.43	2.76~3.22	2.76~3.24	2.75~3.23
DHW heating capacity (kW)	1.28~6.81	3.52~10.50	8.2~13.6	4.80~14.72	6.1~18.5	12.3~20.4	13.6~22.6
DHW COP range	3.2~4.1	3.1~4.0	3.7~4.3	3.2~4.1	3.0~3.7	3.6~4.2	3.6~4.2
Refrigerant	R32	R32	R32	R32	R32	R32	R32
Operating ambient range (°C)	-30~43	-30~43	-30~43	-30~43	-30~43	-30~43	-30~43
Heating outlet water temp (°C)	20~58	20~58	20~58	20~58	20~58	20~58	20~58
DHW outlet water temp (°C)	33~60	33~60	33~60	33~60	33~60	33~60	33~60
Cooling outlet water temp (°C)	7~25	7~25	7~25	7~25	7~25	7~25	7~25
Water flow (m³/h)	1.4	2.2	2.7	3.1	3.9	4.8	6.0
Water pressure drop (kPa)	31	25	35	35	45	50	55
Noise at 1 m dB(A)	≤53	≤55	≤57	≤57	≤57	≤59	≤59
Net / gross weight (kg)	110/120	115/125	130/140	170/180	165/175	220/230	240/250
Pipe connection	DN25	DN25	DN25	DN25	DN25	DN32	DN32
Dimensions W×D×H (mm)	970×475×835	1100×475×985	1080×480×1060	1050×480×1330	1050×480×1380	1160×500×1580	1160×500×1580
IP rating	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4	IPX4
Compressor	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic	Panasonic
Circulation pump	Shimge DC pump	Shimge DC pump	Shimge DC pump	Shimge DC pump	Shimge DC pump	AWMT	AWMT
Circuit breaker (A)	25	32	40	40	25	32	32

Test conditions: Heating: water in/out 30/35 °C, air DB/WB 7/6 °C. Cooling: water in/out 12/7 °C, air DB/WB 35/24 °C. DHW: water in/out 15/55 °C, air DB/WB 7/6 °C. Nominal values under standard test conditions.

Values are taken from the manufacturer's current catalogue and may change without notice. Please request the latest datasheet before final design.
