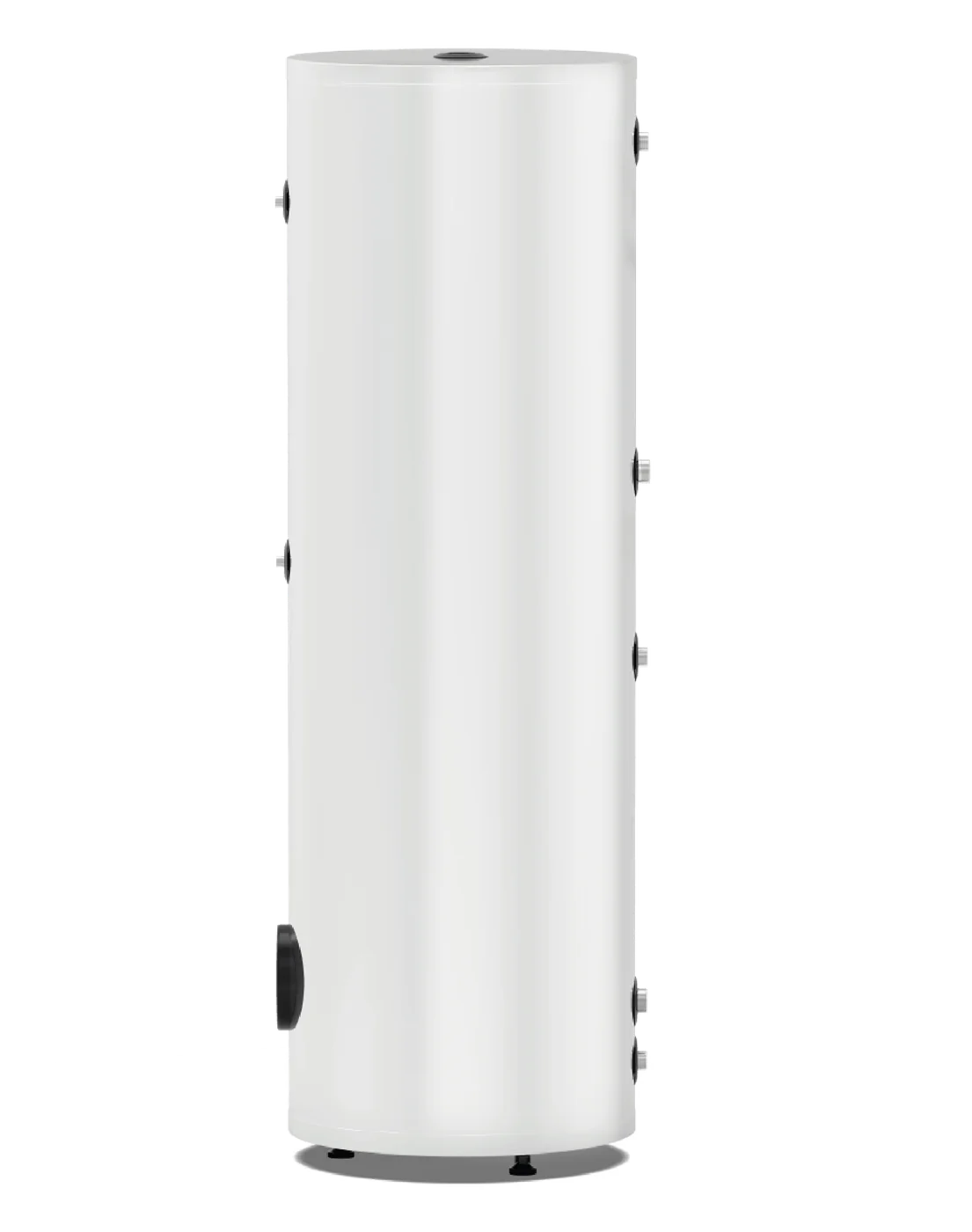

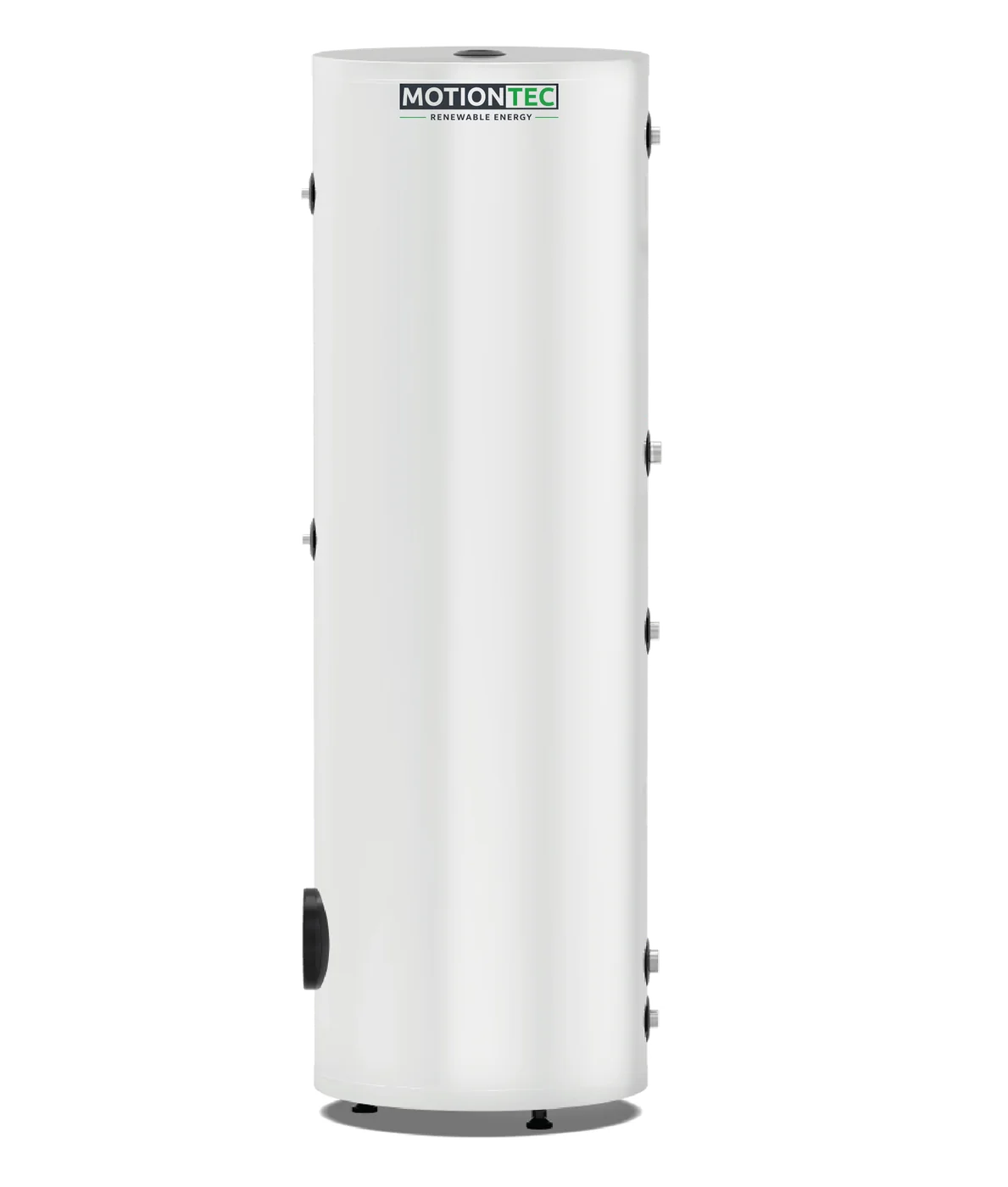

Enamel TSE-VS HP
Enamelled heat pump cylinder with enlarged single coil
Capacities160 – 500 L
CoatingEnamel 200 – 400 µm
CoilEnlarged, heat-pump sized
StandardDIN 4753/3
Tell us your project requirements and we will reply with pricing and lead time.
Overview
Enamel TSE-VS HP is the heat pump version of the single-coil enamelled cylinder. Its serpentine is deliberately oversized, offering 1.3 to 4.0 m² of surface depending on capacity, so a heat pump can transfer its full output at the low flow temperatures it works best with and still reach domestic hot water setpoint quickly. Four sizes cover 160, 200, 300 and 500 litres.
The enlarged exchanger holds 11 to 33 litres of primary water and is rated to 6 bar, matching typical monoblock heat pump circuits and their flow rates. Inside, 200-400 µm of advanced-technology enamel applied in accordance with DIN 4753/3, production to TS EN 12897 and a magnesium anode rod protect the steel and keep the stored water hygienic, while a universal cleaning flange simplifies servicing.
High-density 50 mm polyurethane insulation and an electrostatically painted galvanised shell, replaced by artificial leather on the 500 L, hold standby losses down. An optional electric heater with thermostat is available for peak demand or backup duty, and compact 580 mm diameters up to the 300 L size ease installation in tight utility rooms. Maximum working pressure is 6 bar at up to 95 °C.
Key features
- Enlarged single coil optimised for heat pump flow temperatures (1.3-4.0 m²)
- Coil water volume 11-33 L, rated to 6 bar
- 200-400 µm advanced enamel coating in accordance with DIN 4753/3
- Produced in accordance with TS EN 12897
- Magnesium anode rod and universal cleaning flange for long life
- High-density 50 mm polyurethane insulation, galvanised painted casing
- Optional electric heater support for peak or backup demand
- Compact 580 mm diameter up to 300 L; capacities 160-500 L
Applications
- Air-to-water heat pump domestic hot water
- Residential hot water systems
- Light commercial installations
- Heat pump retrofits replacing boiler cylinders
- Hybrid systems with electric backup
Technical specifications
| Parameter | Enamel TSE-VS HP 160 | Enamel TSE-VS HP 200 | Enamel TSE-VS HP 300 | Enamel TSE-VS HP 500 |
|---|---|---|---|---|
| Product code | MA-2308 | MA-2286 | MA-2299 | MA-2309 |
| Weight (kg) | 79 | 100 | 140 | 160 |
| Dimensions H×D (mm) | 1050 × 580 | 1280 × 580 | 1780 × 580 | 1630 × 750 |
| Max boiler water temp (°C) | 95 | 95 | 95 | 95 |
| Max working pressure (bar) | 6 | 6 | 6 | 6 |
| Insulation material | PU | PU | PU | PU |
| Insulation thickness (mm) | 50 | 50 | 50 | 50 |
| Outer cylinder | Static painted galvanized sheet | Static painted galvanized sheet | Static painted galvanized sheet | Artificial leather |
| Enamel thickness (µm) | 200-400 | 200-400 | 200-400 | 200-400 |
| Coil water volume (L) | 11 | 18 | 26 | 33 |
| Coil surface area (m²) | 1.3 | 2.1 | 3.1 | 4 |
| Coil max pressure (bar) | 6 | 6 | 6 | 6 |
| Feed water in/out | IG 1" | IG 1" | IG 1" | IG 1" |
| Electric heater | IG 1 1/4" | IG 1 1/4" | IG 1 1/4" | IG 1 1/4" |
| Domestic water in/out | IG 3/4" | IG 3/4" | IG 3/4" | IG 3/4" |
| Recirculation | IG 3/4" | IG 3/4" | IG 3/4" | IG 3/4" |
| Anode rod | IG 1 1/4" | IG 1 1/4" | IG 1 1/4" | IG 1 1/4" |
| Sensor | IG 1/2" | IG 1/2" | IG 1/2" | IG 1/2" |
| Blind connection | IG 1 1/4" | IG 1 1/4" | IG 1 1/4" | IG 1 1/4" |
| Cleaning flange | Universal | Universal | Universal | Universal |
Values are taken from the manufacturer's current catalogue and may change without notice. Please request the latest datasheet before final design.
Certifications
- DIN 4753/3 (enamel coating)
- TS EN 12897 (production standard)
- TSE (Turkish Standards Institution)
